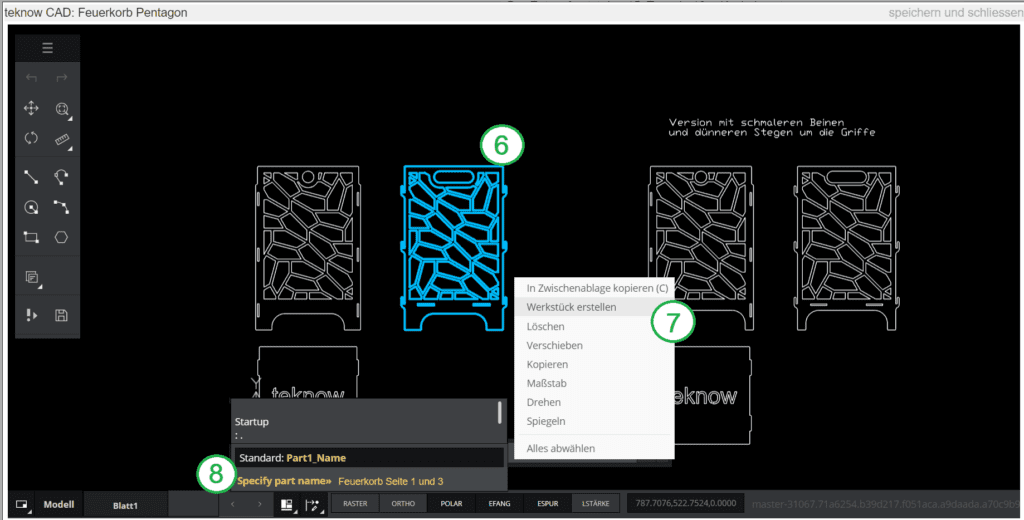

In order to produce the individual workpieces of your product, you mark the desired part geometry in your construction drawing (6). With the right mouse button you call up the context menu and create a workpiece (7) using the “Create workpiece” function. Enter a name and, if desired, a description in the command window (8).

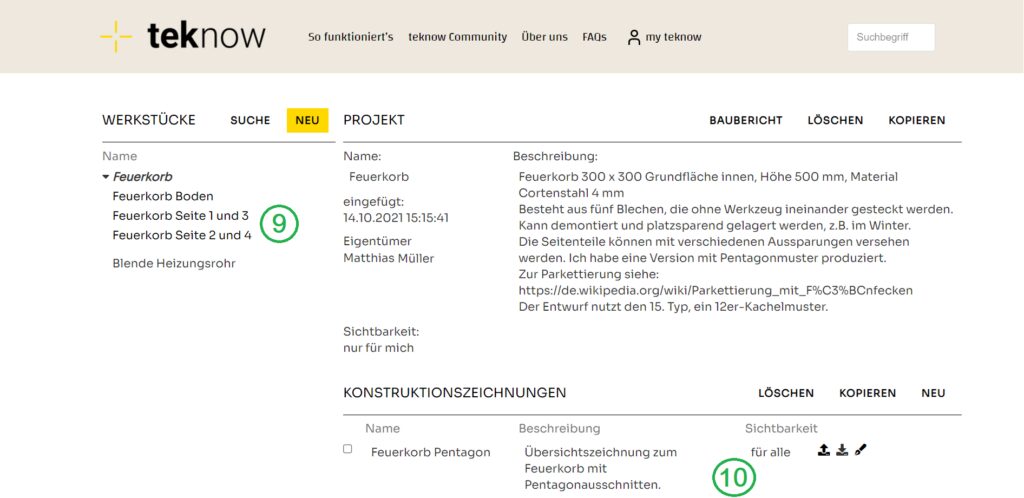

The new workpieces are then automatically created in the tree structure for your project (9).

You can define viewing rights for your project (10). You can upload pictures, requirement descriptions, assembly instructions and other documents, as well as enter comments, for example on the version history of the design.
